What are the applications of phase-shift rectifier transformers?
Time：2024-12-5 Auther：ZTelec-www.ztelectransformer.com
Phase-shift rectifier transformer is mainly composed of two modules: phase shifter and rectifier. The phase shifter usually adopts capacitor phase shifter circuit, which can adjust the phase of output voltage flexibly. The rectifier is responsible for converting high voltage alternating current to high voltage direct current. And its output voltage is directly affected by the phase shifter output voltage phase.

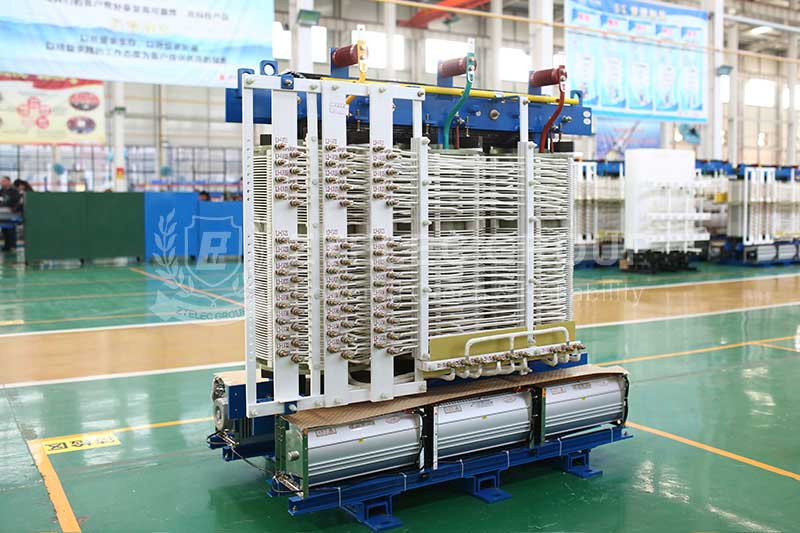

phase-shift rectifier transformers
What are the applications of phase-shift rectifier transformers?
1. Industrial production
Phase-shift rectifier transformers are mainly used in industrial production to supply DC power required by factories, machines and equipment to ensure smooth motor operation, balance power fluctuations. And it plays an important role in improving the efficiency and stability of the power system. Especially in some heavy industry production processes, such as electrolysis, electroplating, etc., phase-shift rectifier transformers can significantly reduce harmonic pollution, improve the quality of power supply, and thus extend the service life of electrical equipment.
2. Electronic engineering
In the field of electronic engineering, phase-shift rectifier transformers are widely used in the DC power supply of electronic circuits. It can convert AC power supply to DC power supply. At the same time, it can also regulate the DC power supply to improve the stability of the system. In addition, the phase-shift rectifier transformer is often used as a single power supply switching power supply or double power supply switching power supply pre-stage to ensure system stability.
3. Communications
In the field of communication, phase-shift rectifier transformers are mainly used to supply power to communication equipment. Its efficient and stable performance helps to ensure the normal operation of the communication equipment and improve the reliability and stability of the communication system.
phase-shift rectifier transformers
4. Renewable energy generation
In renewable energy power generation systems, phase-shift rectifier transformers also show great potential. In wind power and solar photovoltaic systems, the electricity generated is often volatile due to the uncertainty of natural conditions. The phase-shift rectifier transformer can balance these fluctuations by adjusting the phase, which ensures the stability of the output power. This is of great significance for improving the utilization rate of renewable energy and the stability of the power grid.
5. Rail transit
Phase-shift rectifier transformers also play an important role in the rail transit system, which is an important part of traction power supply. And it can ensure the safe, smooth and efficient operation of trains.
6. High voltage inverter
Multipulse wave phase-shift rectifier transformer can provide multiphase rectifier power supply for high voltage frequency converter. In the aspect of industrial DC power supply acquisition, the multi-pulse wave phase-shift rectifier transformer is helpful to reduce harmonic pollution to the power grid. The traditional rectifier transformer may produce more high order harmonics and affect the power quality of the power grid. But the multi-pulse wave shift rectifier transformer can effectively restrain the generation of harmonics and improve the power factor of the power grid by increasing the pulse number and so on.
Technological advantage
Phase-shift rectifier transformer has the following technical advantages:
Improve system stability: Through phase shifting treatment, reduce the impact of harmonics on the system, improve the stability and reliability of the system.
Increase the number of pulses: Through the phase-shift transformer, increase the number of pulses of the rectifier and improve the smoothness and quality of the output voltage.
With their excellent technical characteristics and wide range of applications, phase-shift rectifier transformers have become an integral part of today’s high-performance power solutions. With the development of related research and technology, phase-shift rectifier transformer is expected to play a more critical role in the future power system.
